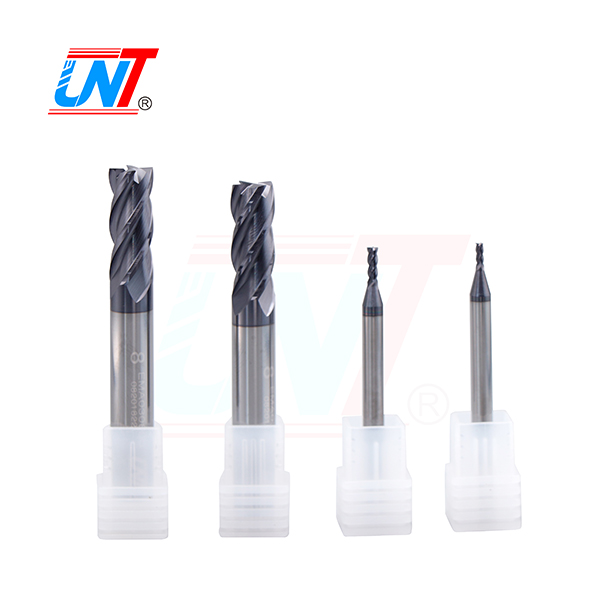

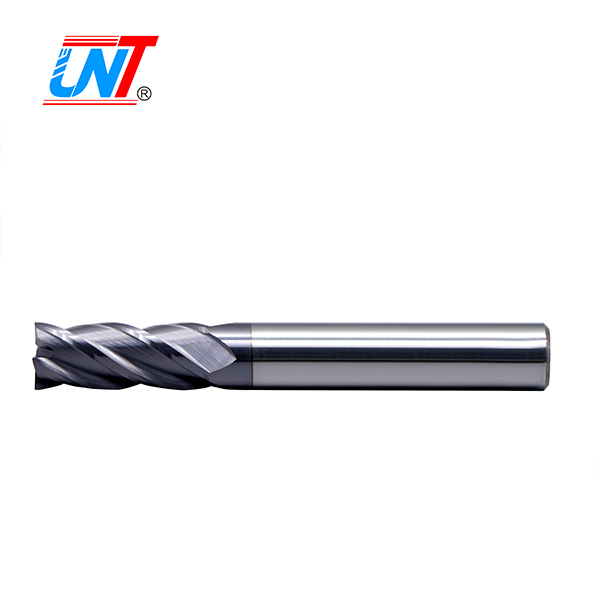

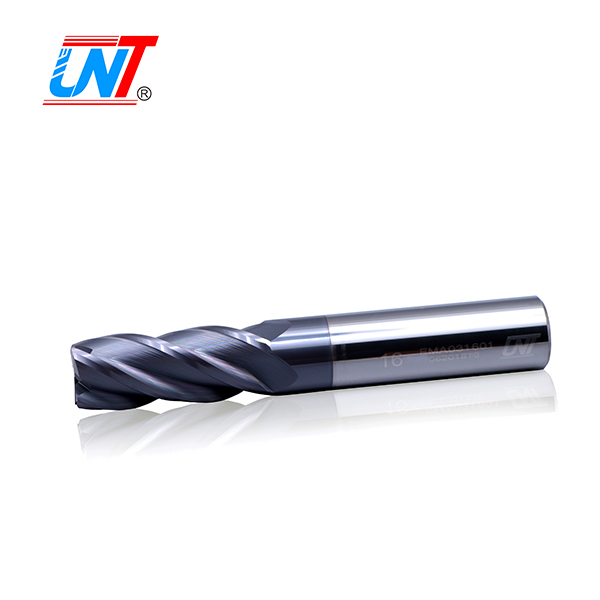

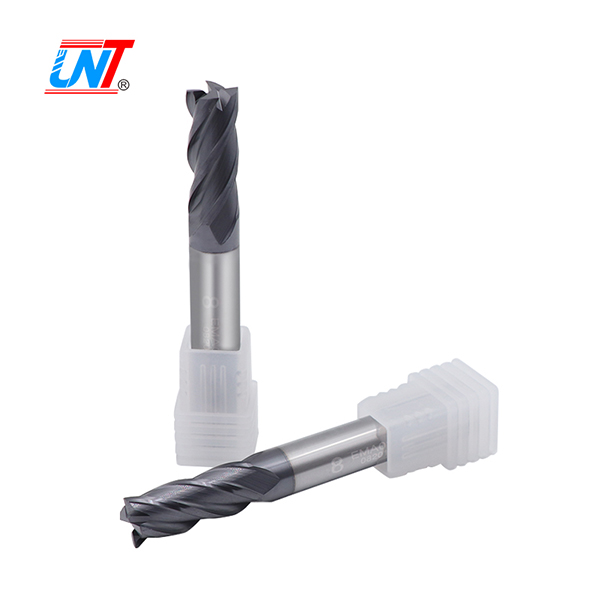

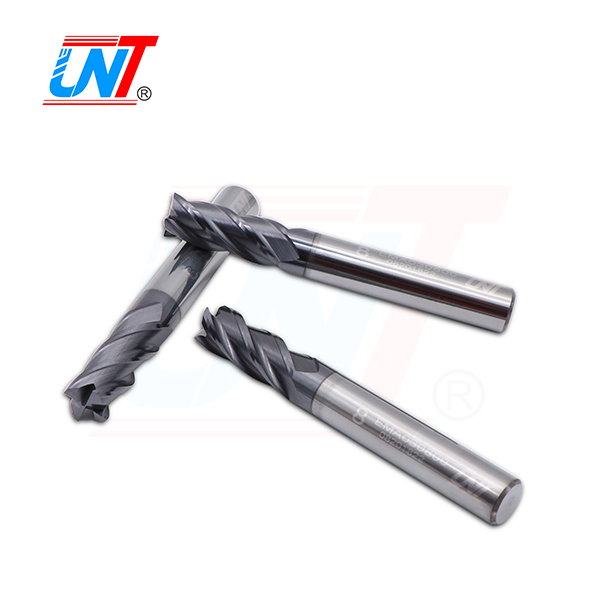

4D Flute Carbide End Mill ,35°Helix, Regular Length
• Designed to Cutting Prehardened steel, carbon steel, alloy steels of molds and dies, up to HRc56 and machine parts.
• Also excellent for stainless steel,titanium, inconel, and other high temperature alloys.
• 4D flute, variable helix design (Approx, 35°)for improved slotting and roughing.
• Oerlikon Balzers coating offer superior hardness and heat resistance.
• High speed cutting, dry and wet cut recommended together.
Product Parameters
| Coating | AITiN / TiALN /TiAISiN / AITiSiN |
| HRC | HRC46/56 |
| Helix Angle | 35°/36°/37° |
| Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod |
| Mill Dia Tolerance | 0-0.030 |
Carbide, Square 4 Flutes, Regular Length - Slotting（UNT-EMA03)

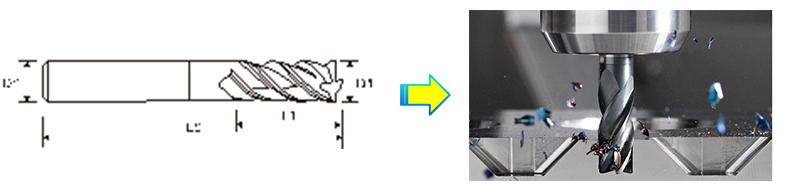

| UNT EDP # | Mill Dia D1 | Shank Dia D2 | Flute length L1 | O.A.L L2 | Flutes |
| EMA030103 | 1.0 | 3 | 3 | 50 | 4 |
| EMA030153 | 1.5 | 3 | 4 | 50 | 4 |
| EMA030203 | 2.0 | 3 | 6 | 50 | 4 |
| EMA030253 | 2.5 | 3 | 6 | 50 | 4 |
| EMA030303 | 3.0 | 3 | 8 | 50 | 4 |
| EMA030104 | 1.0 | 4 | 3 | 50 | 4 |
| EMA030114 | 1.1 | 4 | 4 | 50 | 4 |
| EMA030124 | 1.2 | 4 | 4 | 50 | 4 |
| EMA030134 | 1.3 | 4 | 4 | 50 | 4 |
| EMA030144 | 1.4 | 4 | 4 | 50 | 4 |
| EMA030154 | 1.5 | 4 | 4 | 50 | 4 |
| EMA030164 | 1.6 | 4 | 6 | 50 | 4 |
| EMA030174 | 1.7 | 4 | 6 | 50 | 4 |
| EMA030184 | 1.8 | 4 | 6 | 50 | 4 |
| EMA030194 | 1.9 | 4 | 6 | 50 | 4 |
| EMA030204 | 2.0 | 4 | 6 | 50 | 4 |
| EMA030254 | 2.5 | 4 | 6 | 50 | 4 |
| EMA030304 | 3.0 | 4 | 8 | 50 | 4 |
| EMA030354 | 3.5 | 4 | 10 | 50 | 4 |
| EMA030404 | 4.0 | 4 | 11 | 50 | 4 |
| EMA030106 | 1.0 | 6 | 3 | 50 | 4 |
| EMA030156 | 1.5 | 6 | 4 | 50 | 4 |
| EMA030206 | 2.0 | 6 | 6 | 50 | 4 |
| EMA030216 | 2.1 | 6 | 6 | 50 | 4 |
| EMA030226 | 2.2 | 6 | 6 | 50 | 4 |
| EMA030236 | 2.3 | 6 | 6 | 50 | 4 |
| EMA030246 | 2.4 | 6 | 6 | 50 | 4 |
| EMA030256 | 2.5 | 6 | 6 | 50 | 4 |
| EMA030266 | 2.6 | 6 | 8 | 50 | 4 |
| EMA030276 | 2.7 | 6 | 8 | 50 | 4 |
| EMA030286 | 2.8 | 6 | 8 | 50 | 4 |
| EMA030296 | 2.9 | 6 | 8 | 50 | 4 |
| EMA030306 | 3.0 | 6 | 8 | 50 | 4 |
| EMA030326 | 3.2 | 6 | 8 | 50 | 4 |
| EMA030356 | 3.5 | 6 | 10 | 50 | 4 |
| EMA030406 | 4.0 | 6 | 11 | 50 | 4 |
| EMA030450 | 4.5 | 6 | 13 | 50 | 4 |
| EMA030480 | 4.8 | 6 | 13 | 50 | 4 |
| EMA030501 | 5.0 | 5 | 13 | 50 | 4 |
| EMA030500 | 5.0 | 6 | 13 | 50 | 4 |
| EMA030550 | 5.5 | 6 | 16 | 50 | 4 |
| EMA030600 | 6.0 | 6 | 16 | 50 | 4 |
| EMA030650 | 6.5 | 8 | 20 | 60 | 4 |
| EMA030700 | 7.0 | 8 | 20 | 60 | 4 |
| EMA030750 | 7.5 | 8 | 20 | 60 | 4 |
| EMA030800 | 8.0 | 8 | 20 | 60 | 4 |
| EMA030850 | 8.5 | 10 | 25 | 75 | 4 |
| EMA030900 | 9.0 | 10 | 25 | 75 | 4 |
| EMA030950 | 9.5 | 10 | 25 | 75 | 4 |
| EMA031000 | 10.0 | 10 | 25 | 75 | 4 |
| EMA031050 | 10.5 | 12 | 30 | 75 | 4 |
| EMA031100 | 11.0 | 12 | 30 | 75 | 4 |
| EMA031200 | 12.0 | 12 | 30 | 75 | 4 |
| EMA031400 | 14.0 | 14 | 40 | 100 | 4 |
| EMA031601 | 16.0 | 16 | 40 | 100 | 4 |
| EMA031800 | 18.0 | 18 | 40 | 100 | 4 |
| EMA032000 | 20.0 | 20 | 40 | 100 | 4 |
| EMA036408 | 1/8" | 1/8" | 1/2" | 1-1/2" | 4 |
| EMA036410 | 5/32" | 3/16" | 9/16" | 2" | 4 |
| EMA036412 | 3/16" | 3/16" | 5/8" | 2" | 4 |
| EMA036416 | 1/4" | 1/4" | 3/4" | 2-1/2" | 4 |
| EMA036420 | 5/16" | 5/16" | 13/16" | 2-1/2" | 4 |
| EMA036424 | 3/8" | 3/8" | 1" | 2-1/2" | 4 |
| EMA036432 | 1/2" | 1/2" | 1" | 3" | 4 |
| EMA036440 | 5/8" | 5/8" | 1-1/4" | 3-1/2" | 4 |
• Non-standard size or product parameters not listed above,can be customized according to customer needs.
Application
Our Advantage
- Made from Uncoated and Coated Prime Grade Carbide
- Excellent toollife for Edge of Treatment
- Improved Wear resistance,oxidation resistance and hot hardness with New Coated.-by Oerlikon Balzers.
