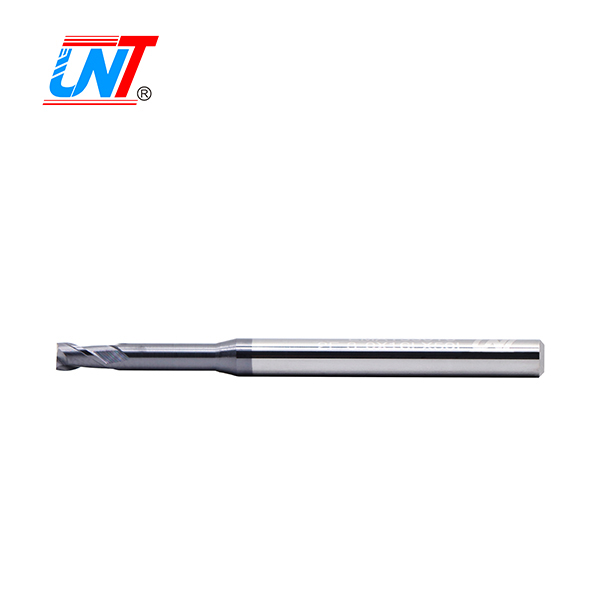

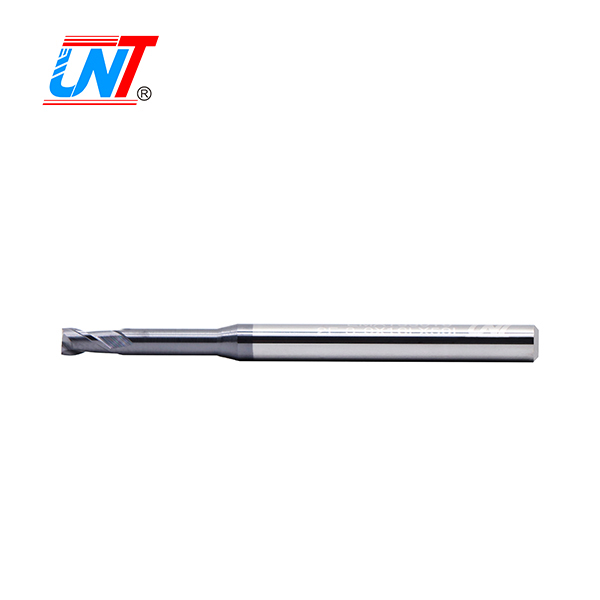

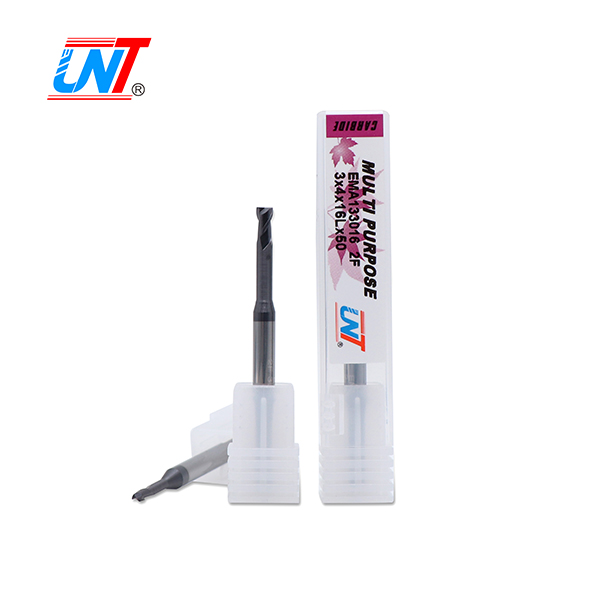

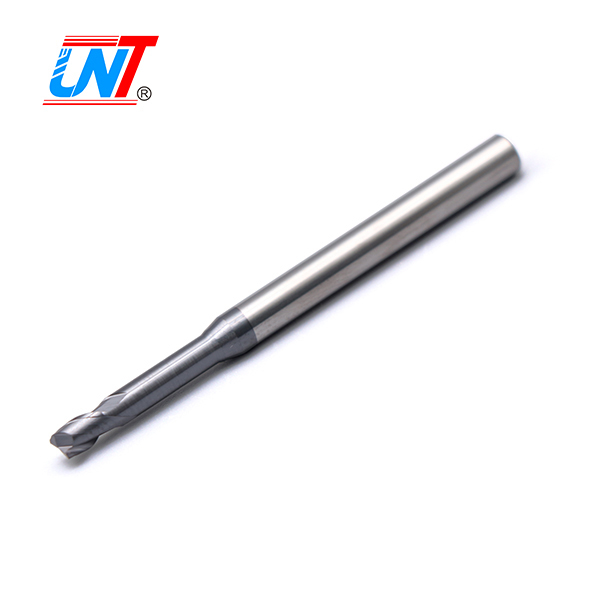

Carbide, 2 Flute Micro Square End Mills, Long Neck
• Excellent performance when cutting prehardened steels, up to HRc56 which are used for molds & dies.
• Special Long neck design for deep cavity machining near walls, for deep slotting and pocketing.
• Super Micro end mill, Diameters Range from 0.02~2.9mm Radius.
• 2 flute, Miniature tools, High precision milling in medical, optical, electronics and aerospace industries.
Product Parameters
| Coating | AITiN / TiALN /TiAISiN / AITiSiN |
| HRC | HRC46/56 |
| Helix Angle | 35°/36°/37° |
| Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod |
| Mill Dia Tolerance | 0-0.030 |
Carbide, 2 Flutes Micro Square End Mills, Long Neck For RIB Processing （UNT-EMA13)

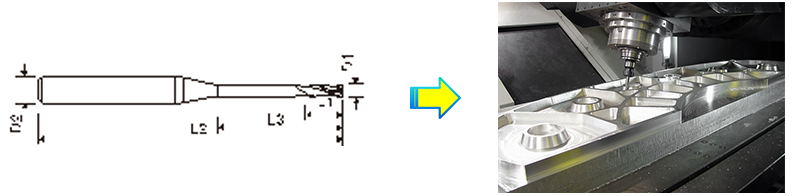

| UNT EDP # | Mill Dia D1 | Effective Length L3 | Shank Dia D2 | Flute length L1 | O.A.L L2 | Flutes |
| EMA130402 | 0.4 | 2 | 4 | 0.6 | 50 | 2 |
| EMA130404 | 0.4 | 4 | 4 | 0.6 | 50 | 2 |
| EMA130406 | 0.4 | 6 | 4 | 0.6 | 50 | 2 |
| EMA130502 | 0.5 | 2 | 4 | 0.8 | 50 | 2 |
| EMA130504 | 0.5 | 4 | 4 | 0.8 | 50 | 2 |
| EMA130506 | 0.5 | 6 | 4 | 0.8 | 50 | 2 |
| EMA130508 | 0.5 | 8 | 4 | 0.8 | 50 | 2 |
| EMA130602 | 0.6 | 2 | 4 | 1 | 50 | 2 |
| EMA130604 | 0.6 | 4 | 4 | 1 | 50 | 2 |
| EMA130606 | 0.6 | 6 | 4 | 1 | 50 | 2 |
| EMA130608 | 0.6 | 8 | 4 | 1 | 50 | 2 |
| EMA130610 | 0.6 | 10 | 4 | 1 | 50 | 2 |
| EMA130804 | 0.8 | 4 | 4 | 1.2 | 50 | 2 |
| EMA130806 | 0.8 | 6 | 4 | 1.2 | 50 | 2 |
| EMA130808 | 0.8 | 8 | 4 | 1.2 | 50 | 2 |
| EMA130810 | 0.8 | 10 | 4 | 1.2 | 50 | 2 |
| EMA130812 | 0.8 | 12 | 4 | 1.2 | 50 | 2 |
| EMA131006 | 1.0 | 6 | 4 | 1.5 | 50 | 2 |
| EMA131008 | 1.0 | 8 | 4 | 1.5 | 50 | 2 |
| EMA131010 | 1.0 | 10 | 4 | 1.5 | 50 | 2 |
| EMA131012 | 1.0 | 12 | 4 | 1.5 | 50 | 2 |
| EMA131014 | 1.0 | 14 | 4 | 1.5 | 50 | 2 |
| EMA131016 | 1.0 | 16 | 4 | 1.5 | 50 | 2 |
| EMA131018 | 1.0 | 18 | 4 | 1.5 | 50 | 2 |
| EMA131020 | 1.0 | 20 | 4 | 1.5 | 50 | 2 |
| EMA131206 | 1.2 | 6 | 4 | 1.8 | 50 | 2 |
| EMA131208 | 1.2 | 8 | 4 | 1.8 | 50 | 2 |
| EMA131210 | 1.2 | 10 | 4 | 1.8 | 50 | 2 |
| EMA131212 | 1.2 | 12 | 4 | 1.8 | 50 | 2 |
| EMA131214 | 1.2 | 14 | 4 | 1.8 | 50 | 2 |
| EMA131216 | 1.2 | 16 | 4 | 1.8 | 50 | 2 |
| EMA131218 | 1.2 | 18 | 4 | 1.8 | 50 | 2 |
| EMA131220 | 1.2 | 20 | 4 | 1.8 | 50 | 2 |
| EMA131506 | 1.5 | 6 | 4 | 2.5 | 50 | 2 |
| EMA131508 | 1.5 | 8 | 4 | 2.5 | 50 | 2 |
| EMA131510 | 1.5 | 10 | 4 | 2.5 | 50 | 2 |
| EMA131512 | 1.5 | 12 | 4 | 2.5 | 50 | 2 |
| EMA131514 | 1.5 | 14 | 4 | 2.5 | 50 | 2 |
| EMA131516 | 1.5 | 16 | 4 | 2.5 | 50 | 2 |
| EMA131518 | 1.5 | 18 | 4 | 2.5 | 50 | 2 |
| EMA131520 | 1.5 | 20 | 4 | 2.5 | 50 | 2 |
| EMA132006 | 2.0 | 6 | 4 | 3 | 50 | 2 |
| EMA132008 | 2.0 | 8 | 4 | 3 | 50 | 2 |
| EMA132010 | 2.0 | 10 | 4 | 3 | 50 | 2 |
| EMA132012 | 2.0 | 12 | 4 | 3 | 50 | 2 |
| EMA132014 | 2.0 | 14 | 4 | 3 | 50 | 2 |
| EMA132016 | 2.0 | 16 | 4 | 3 | 50 | 2 |
| EMA132018 | 2.0 | 18 | 4 | 3 | 50 | 2 |
| EMA132020 | 2.0 | 20 | 4 | 3 | 50 | 2 |
| EMA133008 | 3.0 | 8 | 4 | 4.5 | 50 | 2 |
| EMA133010 | 3.0 | 10 | 4 | 4.5 | 50 | 2 |
| EMA133012 | 3.0 | 12 | 4 | 4.5 | 50 | 2 |
| EMA133014 | 3.0 | 14 | 4 | 4.5 | 50 | 2 |
| EMA133016 | 3.0 | 16 | 4 | 4.5 | 50 | 2 |
| EMA133018 | 3.0 | 18 | 4 | 4.5 | 50 | 2 |
| EMA133020 | 3.0 | 20 | 4 | 4.5 | 50 | 2 |
• Non-standard size or product parameters not listed above,can be customized according to customer needs.
Application
Our Advantage
- Made from Uncoated and Coated Prime Grade Carbide
- Excellent toollife for Edge of Treatment
- Improved Wear resistance,oxidation resistance and hot hardness with New Coated.-by Oerlikon Balzers.
