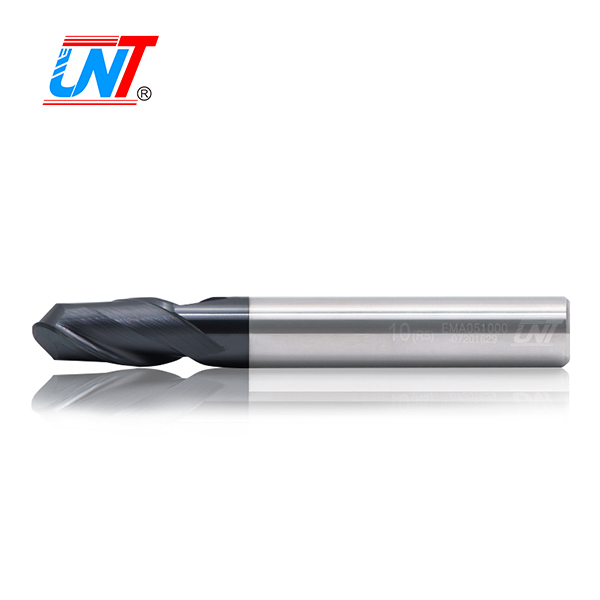

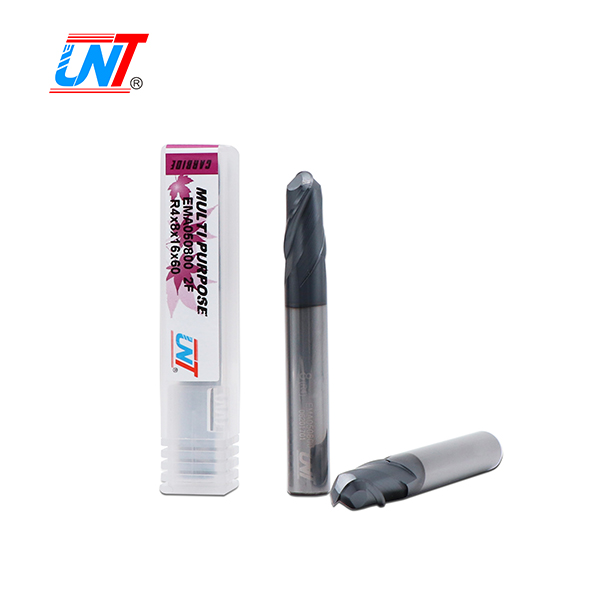

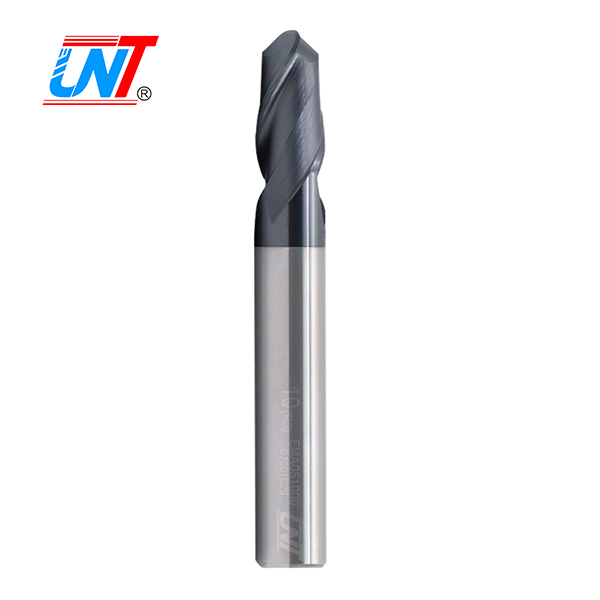

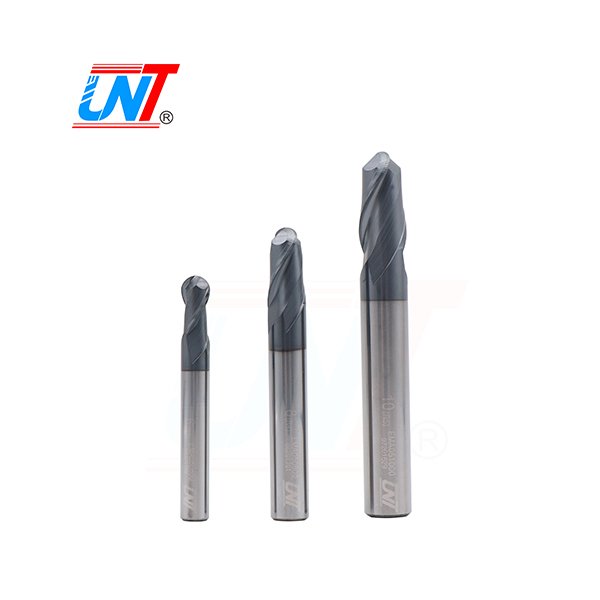

Carbide, 2 Flute Ball nose End Mills, 35°Helix, Regular Length
• Designed to Cutting Prehardened steel, carbon steel, alloy steels of molds and dies, up to HRc56 and machine parts.
• Also excellent for stainless steel,titanium, inconel, and other high temperature alloys.
• 4D flute, variable helix design (Approx, 35°)for improved slotting and roughing.
• Oerlikon Balzers coating offer superior hardness and high performance.• Cutter diameter down to 0.01mm
• Profile, Slot, Chamfer design, easy to install.
Product Parameters
| Coating | AITiN / TiALN /TiAISiN / AITiSiN |
| HRC | HRC46/56 |
| Helix Angle | 35°/36°/37° |
| Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod |
| Mill Dia Tolerance | 0-0.030 |

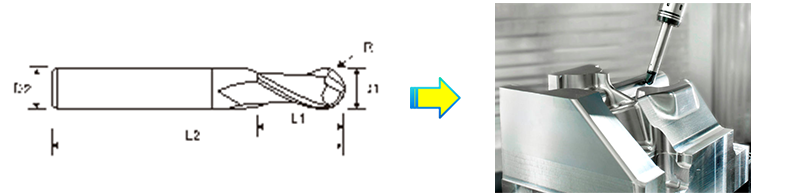

Carbide, 2 Flute ball nose End Mill- Regular Length , For Copy Milling (UNT-EMA05)
| UNT EDP # | Radius of Ball R | Mill Dia D1 | Shank Dia D2 | Flute length L1 | O.A.L L2 | Flutes |
| EMA050103 | R0.5 | 1.0 | 3 | 2 | 50 | 2 |
| EMA050153 | R0.75 | 1.5 | 3 | 3 | 50 | 2 |
| EMA050203 | R1.0 | 2.0 | 3 | 4 | 50 | 2 |
| EMA050303 | R1.5 | 3.0 | 3 | 6 | 50 | 2 |
| EMA050104 | R0.5 | 1.0 | 4 | 2 | 50 | 2 |
| EMA050154 | R0.75 | 1.5 | 4 | 3 | 50 | 2 |
| EMA050204 | R1.0 | 2.0 | 4 | 4 | 50 | 2 |
| EMA050254 | R1.25 | 2.5 | 4 | 5 | 50 | 2 |
| EMA050304 | R1.5 | 3.0 | 4 | 6 | 50 | 2 |
| EMA050404 | R2.0 | 4.0 | 4 | 8 | 50 | 2 |
| EMA050106 | R0.5 | 1.0 | 6 | 2 | 50 | 2 |
| EMA050156 | R0.75 | 1.5 | 6 | 3 | 50 | 2 |
| EMA050206 | R1.0 | 2.0 | 6 | 4 | 50 | 2 |
| EMA050256 | R1.25 | 2.5 | 6 | 5 | 50 | 2 |
| EMA050306 | R1.5 | 3.0 | 6 | 6 | 50 | 2 |
| EMA050406 | R2.0 | 4.0 | 6 | 8 | 50 | 2 |
| EMA050500 | R2.5 | 5.0 | 6 | 10 | 50 | 2 |
| EMA050600 | R3.0 | 6.0 | 6 | 12 | 50 | 2 |
| EMA050700 | R3.5 | 7.0 | 8 | 14 | 60 | 2 |
| EMA050800 | R4.0 | 8.0 | 8 | 16 | 60 | 2 |
| EMA051000 | R5.0 | 10.0 | 10 | 20 | 75 | 2 |
| EMA051200 | R6.0 | 12.0 | 12 | 24 | 75 | 2 |
| EMA051600 | R8.0 | 16.0 | 16 | 32 | 100 | 2 |
| EMA052000 | R10.0 | 20.0 | 20 | 40 | 100 | 2 |
• Non-standard size or product parameters not listed above,can be customized according to customer needs.
Application
Our Advantage
- Made from Uncoated and Coated Prime Grade Carbide
- Excellent toollife for Edge of Treatment
- Improved Wear resistance,oxidation resistance and hot hardness with New Coated.-by Oerlikon Balzers.
