GuangDong UNT cutting Tools Co.,ltd
T: +86-769-8210 0281 www.unt-tools.com E: sales@unt-tools.com info@unt-tools.com

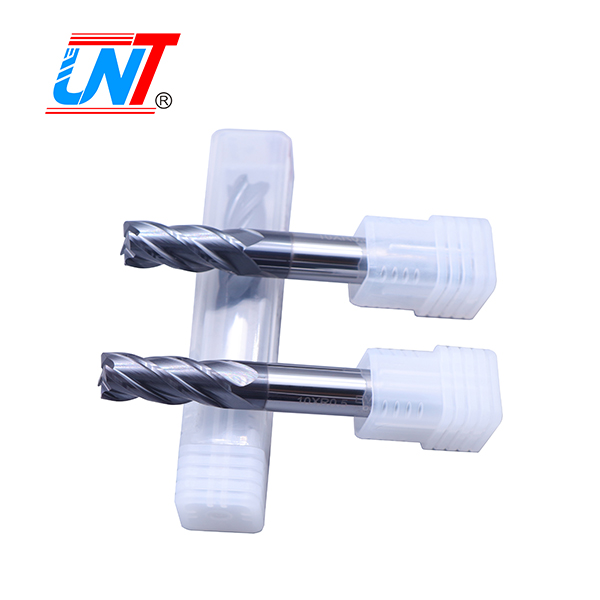

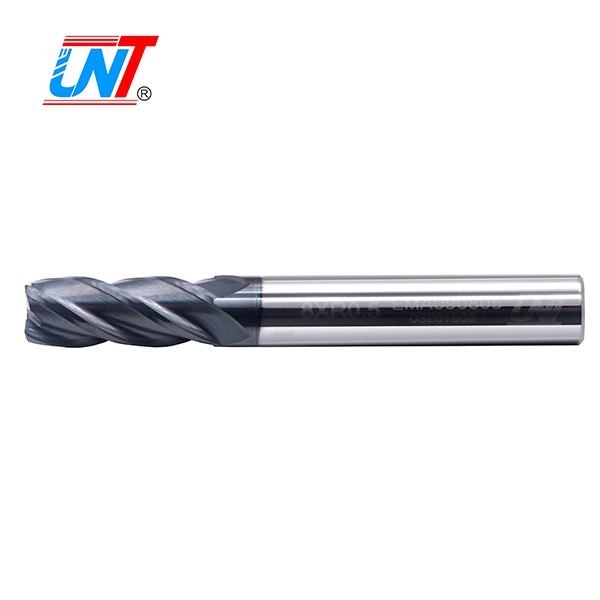

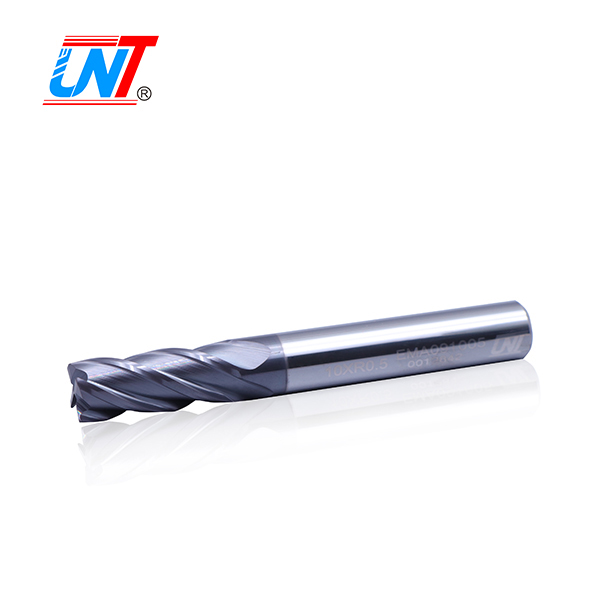

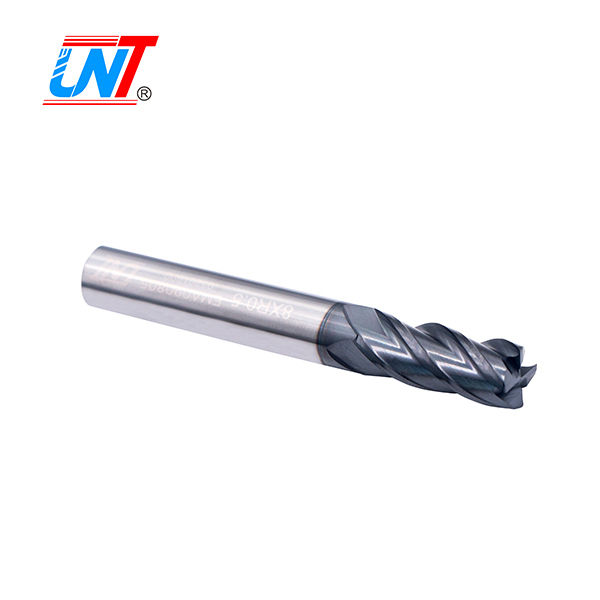

Carbide,4 Flute Corner Radius, Regular Length
• UNT' Special 4~6 flutes design provides small chip loads and quicker removal, more sharp.
• Excellent performance when cutting prehardened steels, up to HRc56 which are used for molds & dies.
• Fit for milling from roughing to finishing one time(≤56HRC), reduce tool changing times.
• Oerlikon Balzers New coating and new tool geometry, outstanding cutting ability and wear resistance.
• 4 flute allows for better workpieces finishes.
Product Parameters
| Coating | AITiN / TiALN /TiAISiN / AITiSiN |
| HRC | HRC46/56 |
| Helix Angle | 35°/36°/37° |
| Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod |
| Mill Dia Tolerance | 0-0.030 |

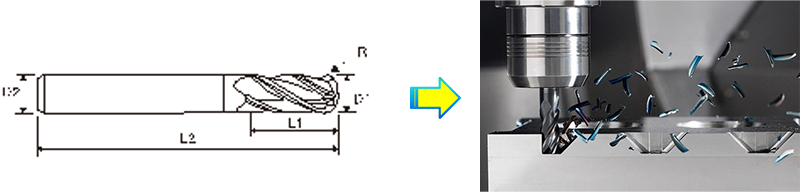

Carbide, 4 Flutes Corner Radius - For Side Cutting（UNT-EMA09）
| UNT EDP # | Corner Radius R | Mill Dia D1 | Shank Dia D2 | Flute length L1 | O.A.L L2 | Flutes |
| EMA090101 | R0.1 | 1.0 | 4 | 3 | 50 | 4 |
| EMA090102 | R0.2 | 1.0 | 4 | 3 | 50 | 4 |
| EMA090201 | R0.1 | 2.0 | 4 | 6 | 50 | 4 |
| EMA090202 | R0.2 | 2.0 | 4 | 6 | 50 | 4 |
| EMA090203 | R0.3 | 2.0 | 4 | 6 | 50 | 4 |
| EMA090302 | R0.2 | 3.0 | 4 | 8 | 50 | 4 |
| EMA090303 | R0.3 | 3.0 | 4 | 8 | 50 | 4 |
| EMA090305 | R0.5 | 3.0 | 4 | 8 | 50 | 4 |
| EMA090310 | R1.0 | 3.0 | 4 | 8 | 50 | 4 |
| EMA090402 | R0.2 | 4.0 | 4 | 11 | 50 | 4 |
| EMA090403 | R0.3 | 4.0 | 4 | 11 | 50 | 4 |
| EMA090405 | R0.5 | 4.0 | 4 | 11 | 50 | 4 |
| EMA090410 | R1.0 | 4.0 | 4 | 11 | 50 | 4 |
| EMA090505 | R0.5 | 5.0 | 6 | 13 | 50 | 4 |
| EMA090510 | R1.0 | 5.0 | 6 | 13 | 50 | 4 |
| EMA090602 | R0.2 | 6.0 | 6 | 16 | 50 | 4 |
| EMA090603 | R0.3 | 6.0 | 6 | 16 | 50 | 4 |
| EMA090605 | R0.5 | 6.0 | 6 | 16 | 50 | 4 |
| EMA090610 | R1.0 | 6.0 | 6 | 16 | 50 | 4 |
| EMA090615 | R1.5 | 6.0 | 6 | 16 | 50 | 4 |
| EMA090620 | R2.0 | 6.0 | 6 | 16 | 50 | 4 |
| EMA090802 | R0.2 | 8.0 | 8 | 20 | 60 | 4 |
| EMA090803 | R0.3 | 8.0 | 8 | 20 | 60 | 4 |
| EMA090805 | R0.5 | 8.0 | 8 | 20 | 60 | 4 |
| EMA090810 | R1.0 | 8.0 | 8 | 20 | 60 | 4 |
| EMA090815 | R1.5 | 8.0 | 8 | 20 | 60 | 4 |
| EMA090820 | R2.0 | 8.0 | 8 | 20 | 60 | 4 |
| EMA091005 | R0.5 | 10.0 | 10 | 25 | 75 | 4 |
| EMA091010 | R1.0 | 10.0 | 10 | 25 | 75 | 4 |
| EMA091015 | R1.5 | 10.0 | 10 | 25 | 75 | 4 |
| EMA091020 | R2.0 | 10.0 | 10 | 25 | 75 | 4 |
| EMA091030 | R3.0 | 10.0 | 10 | 25 | 75 | 4 |
| EMA091205 | R0.5 | 12.0 | 12 | 30 | 75 | 4 |
| EMA091210 | R1.0 | 12.0 | 12 | 30 | 75 | 4 |
| EMA091215 | R1.5 | 12.0 | 12 | 30 | 75 | 4 |
| EMA091220 | R2.0 | 12.0 | 12 | 30 | 75 | 4 |
| EMA091230 | R3.0 | 12.0 | 12 | 30 | 75 | 4 |
• Non-standard size or product parameters not listed above,can be customized according to customer needs.
Application
Our Advantage
- Made from Uncoated and Coated Prime Grade Carbide
- Excellent toollife for Edge of Treatment
- Improved Wear resistance,oxidation resistance and hot hardness with New Coated.-by Oerlikon Balzers.
